Optical Instrument > Picosecond Transient Absorption Spectroscopy System

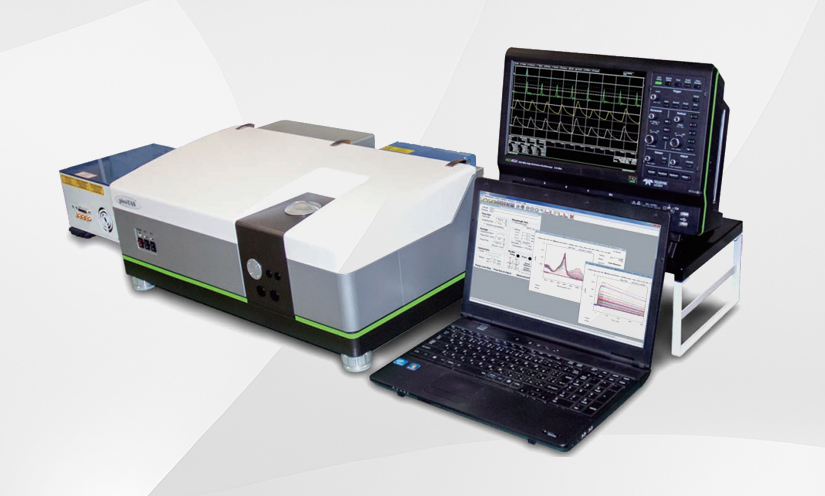

picoTAS

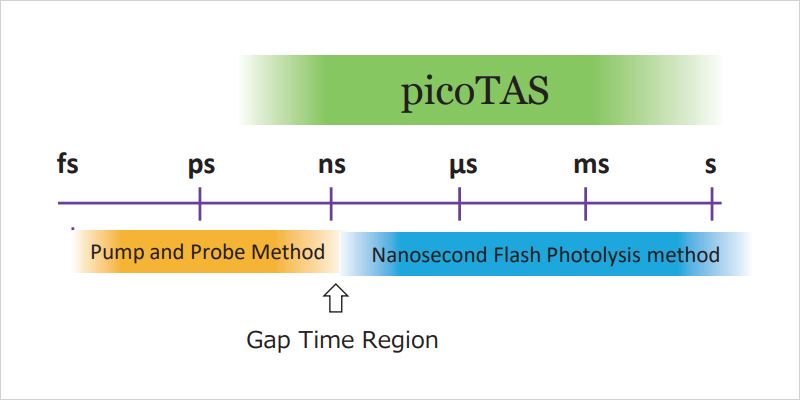

picoTAS는 새로 개발된 RIPT(Randomly Interleaved Pulse Train) 방식을 사용하여 기존 방식으로는 측정하기 어려운 Gap Time Region(1~20 nanoseconds)을 포함한 다양한 시간 범위에서 발생하는 변화를 측정하는 데 매우 유용합니다.
또한 형광 신호를 제거하는 기능이 있어 기존에 측정할 수 없었던 다양한 Photo-induced reactions을 측정할 수 있습니다.

Features

Completely Covers Gap Time Region (1ns ~ 20ns)
Broadband Wavelength Coverage from VIS to NIR
Transient absorption measurement from 100 picosecond to millisecond
Removal of fluorescence signal
Asynchronous Operation
Compact Size / No Optical Bench Required (-ns model)

Applications

Observation of Transient Absorption Spectra of Excited Singlet/Triplet State
Measurement of Intersystem Crossing (ISC) Rate
Research of Electron Transfer, Charge Separation/Recombination Dynamics
Observation of Intermolecular Reaction, Excimer Generation etc.
Analysis of Dynamics of Artificial Photosynthesis, Solar Energy Cell, Organic EL

Specifications

Models		picoTAS-ns	picoTAS-ps
Method		RIPT method (Randomly Interleaved Pulse Train method)
Time Resolution (10% 90% rise time)		< 400 ps	< 100 ps
Delay Time resolution		10ps, 20ps, 50ps, 100ps, 200ps, 500ps, 1ns, 2ns, 5ns, 10ns, 20ns
Full scale		100 ns-2 ms
Wavelength Range		410-1600 nm
Automatic Control		wavelength scan, light intensity adjustment, shutter control
Sample Holder		solution (optical path length is 2 mm), thin film
Pump Light Source	Source	passive Q-SW microchip laser	picosecond mode-locked laser
	Wavelength	532nm and/or 355nm	532nm and/or 355nm and/or 266nm
	Pulse Width	< 350 ps	< 25 ps
	Pulse Energy	> 20 μJ	> 80 μJ
	Repetition Rate	100-1000 Hz (variable)	1000 Hz
Probe Light Source	Source	picosecond Supercontinuum Light Source
	Pulse Width	< 50-100 ps (dependent on wavelength)
	Repetition Rate	20 MHz ±5%
PC & Software	OS	Windows® 7/10
PC & Software	Function	Automatic reconstruction of transient absorption temporal profile, curve fitting (nonlinear least square method), data storage in text format
Installation Environment	no optical bench required	on optical bench
