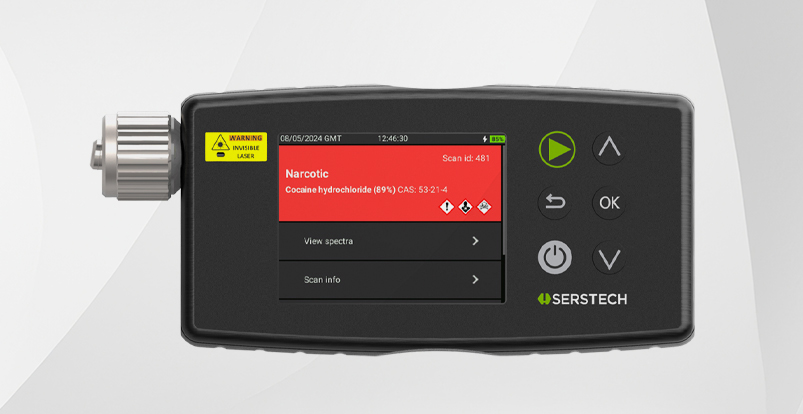

Arx-mkII
현장 작업자들이 한 손과 한 개의 버튼으로 작동할 수 있는 Handheld Raman입니다.
Biotoxin을 포함한 다양한 라이브러리를 제공하여 신뢰할 수 있는 정확한 결과를 쉽게 제공합니다.
또한 PC(ChemDash)와 모바일기기(ChemDash Mobile)를 활용하여 현장에서 보고서를 작성할 수 있습니다.
Instrument Specifications
| Instrument type |
Handheld Raman spectrometer |
| Instrument type |
Handheld Raman spectrometer |
| Weight |
590g (1.3lb) |
| Size |
160 mm x 85 mm x 28 mm (6.2 x 3.3 x 1.1) |
| Laser excitation wavelength |
785nm |
| Laser output power |
Max 300mW, user adjustable |
| Barcode reader |
QR and most common barcode formats |
| Max spectral range |
400 cm-¹ to 2 300 cm-¹ |
| Auto-focus |
0-4mm |
| Spectral resolution |
8-10 cm-¹ |
| Detector type |
Linear CMOS |
| Display |
3.5” TransflectiveTFT with LED backlight, Night-vision mode |
| Internal memory |
More than 100 000 measurements |
| Data export formats |
txt, .csv, .jcamp |
| Connectivity |
USB-C, Wi-Fi (2.4 GHz), Bluetooth 5.1 |
| Battery |
Rechargeable - more than 12 hours of typical use
|
| Operating temperature |
-20°C to +50°C (-4°F to 122°F)
|
| Storage temperature |
-30°C to +50°C (-22°F to 122°F)
|
| Relative humidity |
5-90%
|
Operation and Performance
| Start-up time |
Less than 20 sec. in room temperature |
| Scan time |
Most substances less than 5 sec. |
| Exposure |
Auto-exposure or manual exposure, 0.001 60 sec |
| Size |
160 mm x 85 mm x 28 mm (6.2 x 3.3 x 1.1) |
| MTBF |
50000h |
| Approvals |
CE, IEC 60529 IP67, MIL-STD-810G 514.6 (vibration), MIL-STD-810G 516.6 (functional shock), SWGDRUG category A compliant for presumptive testing, g, 21 CFR part 11 compliant (Instrument and ChemDash) ATAK |
Accessories and Optional Components
| Included accessories |
Vial holder, watertight case, protective cap with calibration target, sample vials, USB-C cable, AC adapter 5 VDC/1 A USB for charging |
| Software included |
ChemDashLite. Optional software: ChemDashPro and ChemDashmobile (iOS & Android) |
| Available libraries |
Explosives, Narcotics, Chemical Warfare Agents, Hazardous materials, Pharmaceuticals, Biotoxins, User defined libraries. Total number of substances more than 17000. |
Functionality and Features
| Type of substances |
Solid, liquids, powders, and tablets |
| Mixture analysis |
Yes |
| Delay function |
1second to 15minutes |
| Features |
Auto-focus, Quick Scan, User authorization, Event logging, Scan delay, User-defined libraries, User-added substances and Night-vision mode. |
| Supported languages: |
Arabic, Chinese, English, French, German, Indonesian, Italian, Japanese, Korean, Polish, Romanian, Spanish, Swedish, Ukrainian, and Vietnamese. Additional languages on request. |
