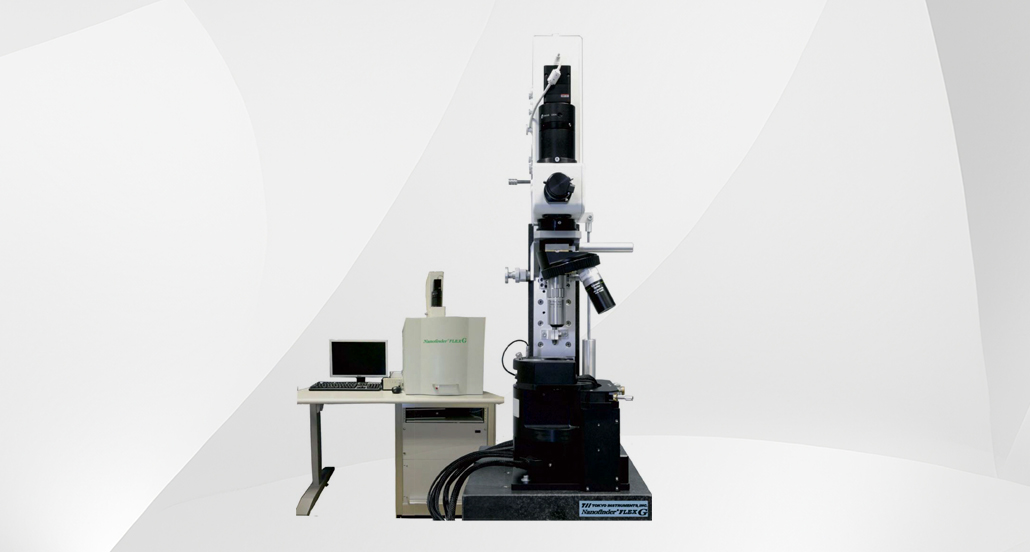

Nanofinder Flex G
세 가지 기능(3D Confocal Raman, AFM-Raman, Tip-Enhanced Near-field Raman)이 결합된 라만 시스템입니다.
Piezo stage를 이용하여 3D 이미지 맵핑이 가능하며, 이를 이용하여 샘플의 피부 흡수도 등의 분석에도 사용할 수 있습니다.
3D Confocal Raman Microscopy
- High sensitivity: Detection of the weak 4th order Si peak
- High spatial resolution: < 200nm
- High speed: < 3ms/point (spectrum)

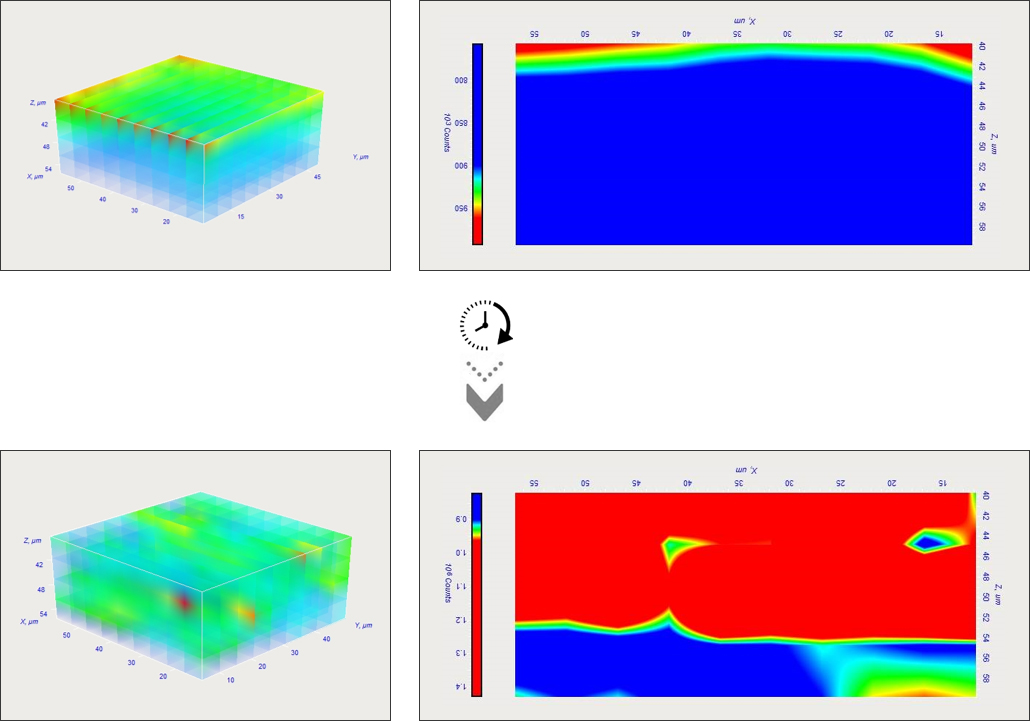

3D Skin Imaging Analyzer
- Sken Depth Profile Image
- 3D Rotation Image
AFM-Raman
- Simultaneous or sequential measurements of AFM and Raman images from the same sample area Surface topography with simultaneous 2D confocal Raman
- AFM resolution: 0.1nm
- High spatial resolution: < 450 nm(Raman)
- High speed: < 7ms/point (spectrum)
Tip-Enhanced Near-field Raman
- TERS (Tip-enhanced Raman spectroscopy)
- Spatial resolution < 50nm by Near-Filed Raman method
Features
- Stable experimental conditions
- Granite Frame
- Smart Sliding Mechanism (SSM)
- LED Illuminator
- High Throughput
- Small Footprint
- Polarization Measurement
